Home » Hot melt adhesive film » PO polyolefin Double-Sided hot melt adhesive film
a

PO polyolefin Double-Sided hot melt adhesive film

USD 0.01
Lowest wholesale price (square meters)

Product Introduction

The PO double-sided hot melt adhesive film composition is a polyolefin, and It is thermoplastic, which is washable, transparent in color, but not flexible.

PO hot melt adhesive film is suitable for bonding textile fabrics, metal sheets and other materials and has applications in apparel, home textiles and industrial products.

Applicable bonding materials:

Applicable fields:

Characteristic:

We have two types of PO double-sided hot melt adhesive film, XJO115 and XJO116. The XJO115 model PO hot melt adhesive film has a layer of release backing material, which is a double-layer structure, while the XJO116 model PO hot melt adhesive film does not have a backing paper.

Technical Data Sheet

Model XJO115 XJO116
Ingredient PO(Polyolefin)
With release paper YES NO
Color/shape Transparent/film Transparent/film
Melting range (℃) 100-115 100-115
Customizable thickness range (mm) 0.05-0.60 0.05-0.60
Customizable wide range(mm) 5-1500 5-1500
Customizable length of each roll(meters) 5-500 5-500
Recommended use parameters Use temperature(℃) 125-150 125-150
Ironing pressure(MPa) 0.2 0.2
Ironing time(s) 10-30 10-30
Characteristic No elasticity, washable

The thickness, width and length of each roll of PO hot melt adhesive film

We can customize the hot melt adhesive film; please refer to the technical parameter table above. For example, if you want to customize 48cm, 100cm width or 1cm, 2cm width, we can do it. 48cm and 50cm width products are trendy. However, for each roll’s length, width, and thickness, different types of PO hot-melt adhesive films have different customization ranges.

The difference between different types of PO hot melt adhesive film and product pictures

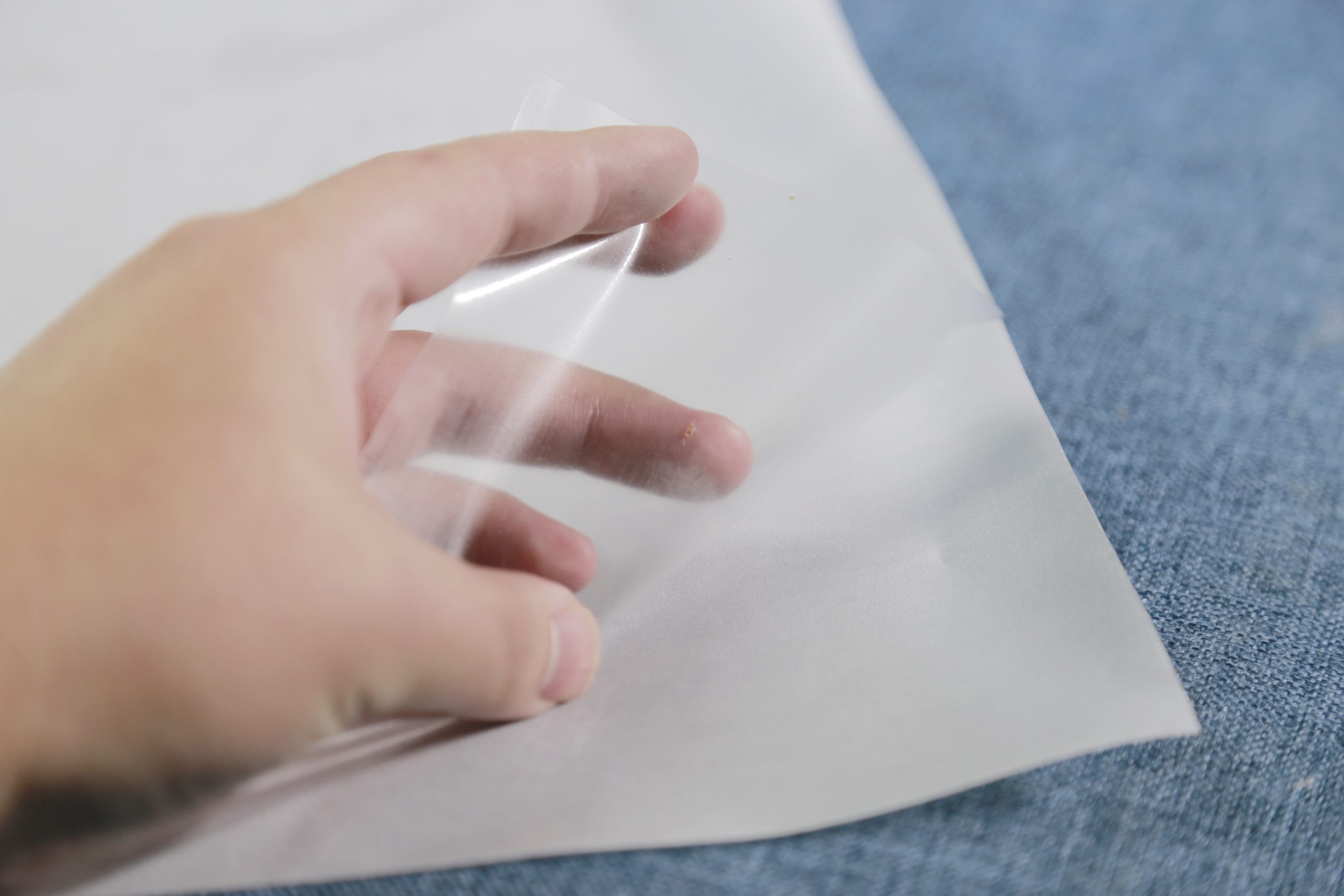

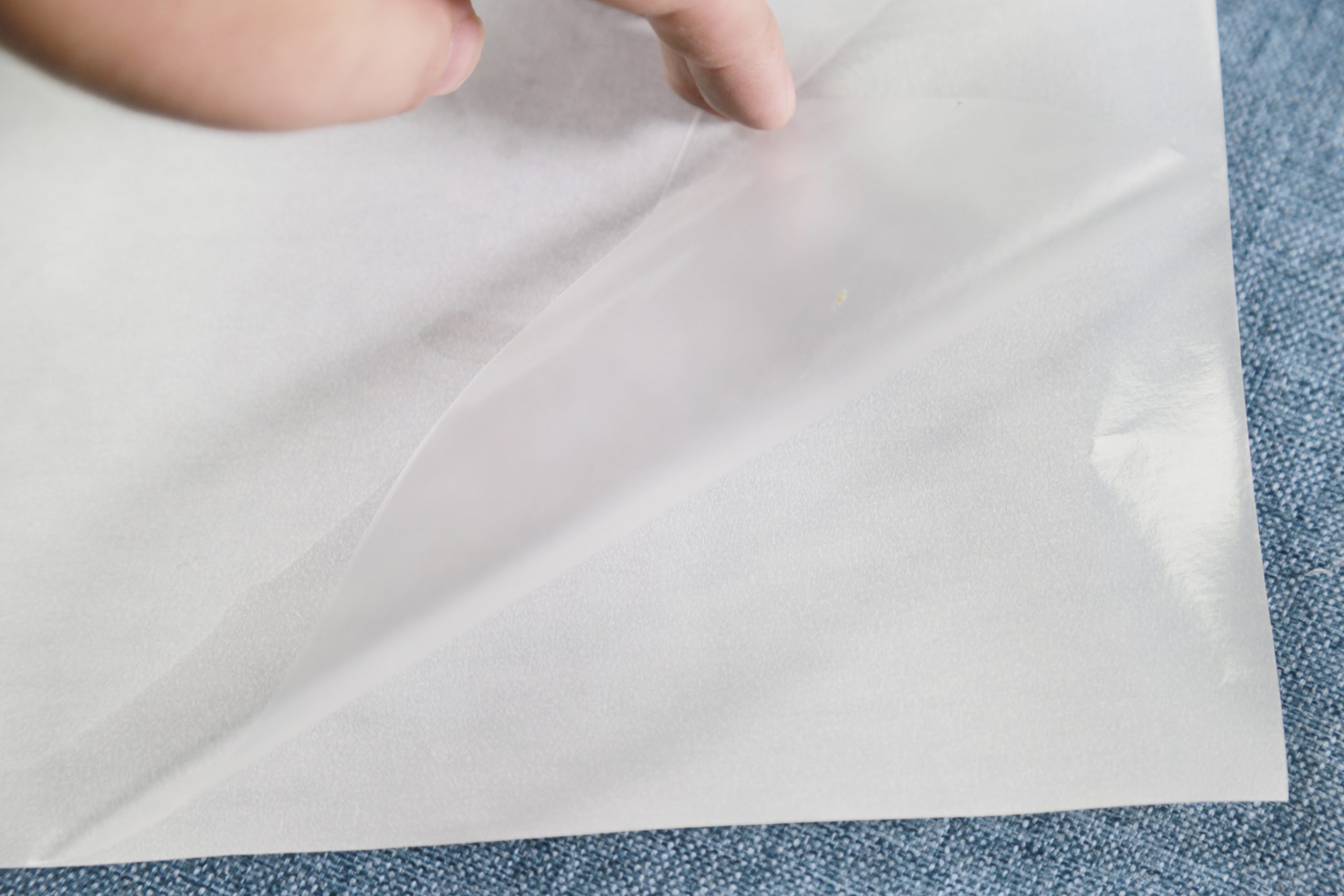

XJO115 Model PO Hot Melt Adhesive Film

XJO115 model PO hot-melt adhesive film

The XJO115 model PO hot melt adhesive film comes with a layer of release paper, the thinnest thickness is 0.05mm, and the transparent color. Usually 100 meters per roll.

Common thickness: 0.05mm, 0.06mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm

Common width: 480mm, 1000mm, 1200mm, 1500mm

The common length of every roll:100 meters/roll

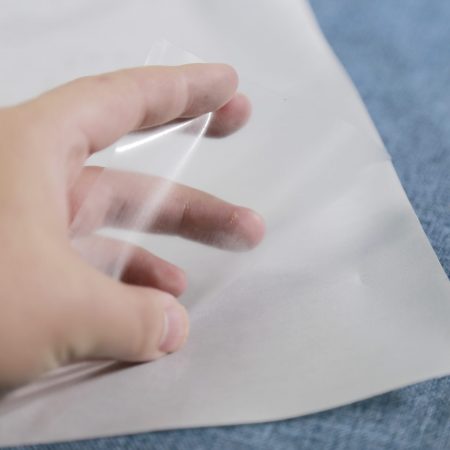

XJO115 Model PO Hot Melt Adhesive Film
XJO115 Model PO Hot Melt Adhesive Film
XJU120 TPU hot melt adhesive film
0.05mm thickness TJS125 model PES hot melt adhesive film

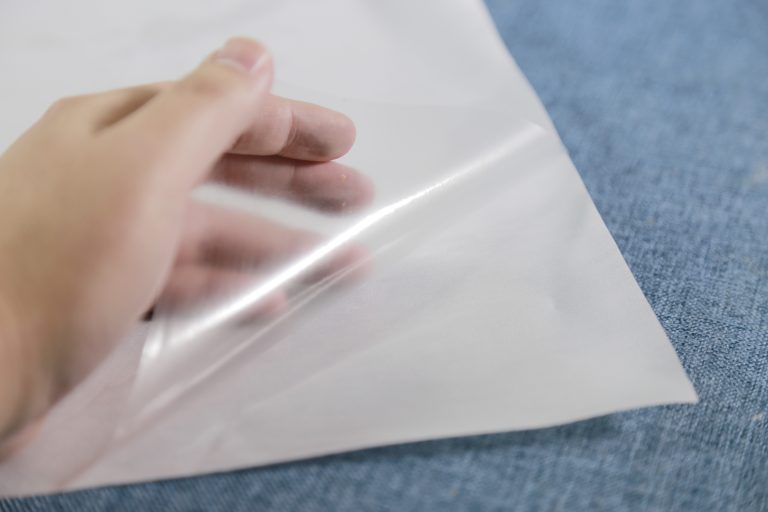

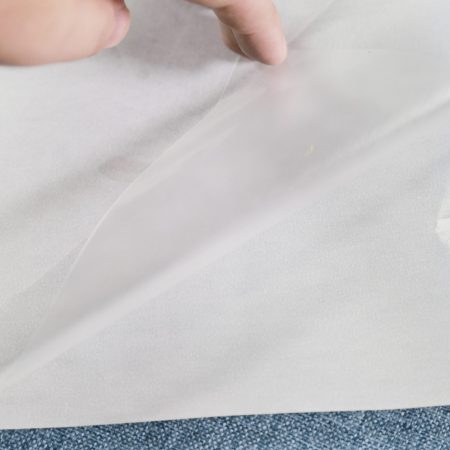

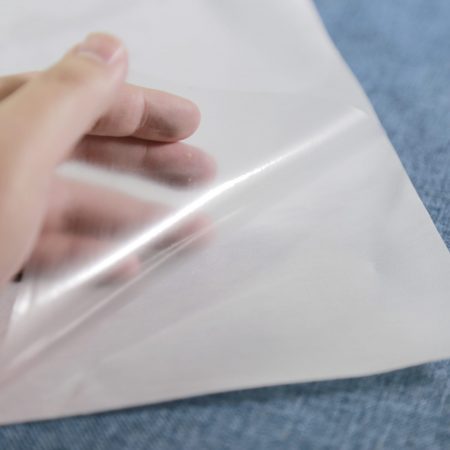

XJO116 model PO hot-melt adhesive film

XJO116 model PO hot melt adhesive film does not have a backing paper, which is similar to XJO115 in other parameters.

Common thickness: 0.05mm, 0.06mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm

Common width: 480mm, 1000mm, 1200mm, 1500mm

The common length of every roll:100 meters/roll

0.05mm thickness TJS125 model PES hot melt adhesive film
TJS125 model PES hot melt adhesive film
TJS125 model PES hot melt adhesive film

Breathable and soft mesh hot-melt adhesive web

If you think that hot melt adhesive film is more expensive and has no air permeability, then you might consider using a hot melt adhesive web. Hot melt adhesive web is a net-like hot melt adhesive product that looks similar to non-woven fabrics, has a soft hand feel, has good air permeability, and has a lower weight cost. Don’t worry about its environmental performance because it is similar to the hot melt adhesive film, and it is a hot melt adhesive product. We have passed the RoHS 2.0 test of SGS. You can click here to view different types of hot melt adhesive webs.

Our advantage

factory

Source manufacturer, providing wholesale sales

We are a manufacturer of hot melt adhesive film & web in China, not a trader, you can get more favorable wholesale prices. We have multiple production equipments with a daily output of 90,000 meters.

Hot melt adhesive pellets

Made of 100% hot melt adhesive particles

The hot melt adhesive film & web we produce are made of 100% hot melt adhesive particles, and no other materials (such as talcum powder) are added to ensure better bonding performance and quality of the product.

RoHS 2.0

Has passed SGS's RoHS 2.0 test

The product has passed SGS's RoHS 2.0 test. It is safe and has no harm to the body. It can be exported to Europe, America and other countries.

Is PO hot melt adhesive film EAA hot melt adhesive film?

NO, they are not one type. The composition of PO hot melt adhesive film is polyolefin. EAA hot melt adhesive film’s composition is ethylene acrylic acid copolymer, so they are not the same product type. Many people confuse them because they do have similarities.

FAQ

The use of PO hot melt adhesive film with backing paper and without backing paper is different. The hot melt adhesive film without backing paper only needs to be ironed between the two layers of materials to be bonded, while the hot melt adhesive film with the backing paper needs to be ironed on the backing side. Laminate it with one material and then with another material.

We support non-standard customization, including: width, thickness, length of each roll and other items, etc., please refer to the technical table, please contact us for details.

There are many reasons why the hot melt adhesive film is not firmly bonded, including the operation method, equipment condition and the selected hot melt adhesive film type. It is essential to choose different types of hot melt adhesive films for bonding different materials. Each type of hot melt adhesive film has its own good bonding materials, which is not determined by its price. For example, when you plan to bond two kinds of EVA foam, it is more recommended to use EVA-type hot melt adhesive film instead of TPU hot melt adhesive film. Even if TPU hot melt adhesive film is more expensive. I suggest you click here for more details.

We can provide free samples to facilitate your testing. But we cannot bear the international logistics costs. It is best if you have a DHL, FedEx or TXT account.

We have a variety of packaging solutions. Usually, the packaging used for the entire roll is: PE bubble film + kraft paper woven bag, and the inner diameter of the paper tube is 76mm. If you need carton packaging and adding marks, please contact us.

Store in a dry place at room temperature and avoid direct sunlight. Theoretically speaking, the product has no shelf life limit, but it is not recommended to leave it for more than 18 months when it is not in use.

We support T/T, PayPal, Alipay, WeChat and other payment methods and can provide FOB, EXW, CIF, DDU, and other quotation methods. The lead time varies according to the product model and quantity, usually between 3-30 days.

You can try to apply simple equipment, such as an iron or a flat ironing machine. If you need more professional and efficient equipment, I can recommend equipment manufacturers in China and provide technical support.

Yes, we can accept OEM, you can send us your requirements, and we will pack and label according to your requirements.

Hot melt adhesive films are divided into many types and models according to their composition. They are different in terms of elasticity, color, washing resistance and suitable fields. They are divided into TPU hot melt adhesive film, PES hot melt adhesive film, and EVA Hot melt adhesive film, PO hot melt adhesive film, and PA hot melt adhesive film, etc. Among them,  PO hot melt adhesive film is one of them. You can view more details by viewing an article on the classification of hot melt adhesive film types.

Yes, we can customize fusible webs and hemming webs, and we have relevant production experience, such as 45 cm width * 5 m length/roll and 43 cm width * 93 cm width/bag, etc. If you have a product sample like this, we can customize the finished product according to your sample and packaging design drawing. MOQ is 2000 units/model.

The PO hot melt adhesive film we produce is a thermoplastic hot-melt adhesive film. When it is exposed to high temperatures, it will repeatedly melt, not just once. Therefore, after you use it to make a product, you should not expose it to high temperatures again.
