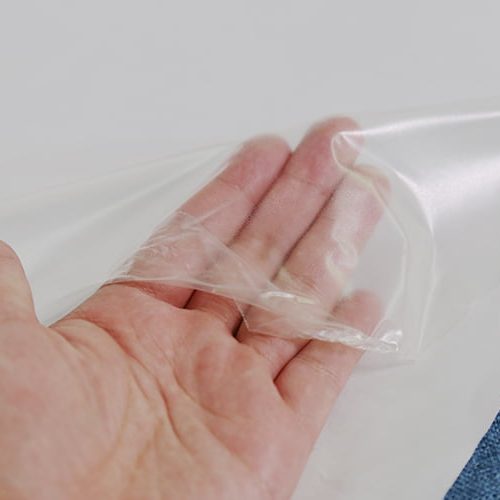

Elastic Stretch TPU polyurethane Double-sided Hot Melt Adhesive Film
Brand: KETAEBO
Certification : SGS RoHS 2.0
Model : HJU120, XJU120, XJU150, XJU135, JJU120, PE-XJU120
Place of Origin : China
MOQ:100 yards
Delivery time: 3-10 days
Payment Terms:T/T, Western Union,Paypal
Supply: 90,000 meters per day
Product Introduction
The component of the elastic stretch TPU double-sided hot melt adhesive film is polyurethane, which has good washing resistance and belongs to the middle and high-temperature melting point type.
Elastic stretch TPU hot melt adhesive film is more suitable for the bonding of textile cloth, sponge, leather, TPU film, and other materials, and it is also the most used type in hot melt adhesive film. It is widely used in the fields of apparel, footwear, underwear, home textiles, medical and industrial products. The product has passed the RoHS 2.0 test of SGS company.
TPU hot melt adhesive film is divided into three types according to different melting points, namely low-temperature TPU hot melt adhesive film, medium temperature TPU hot melt adhesive film and high-temperature TPU hot melt adhesive film. Among them, the low-temperature TPU hot-melt adhesive film has no elasticity stretch and the color is white matte; while the medium-temperature and high-temperature melting point TPU hot-melt adhesive film has elasticity stretch and the color is transparent. This article introduces the TPU hot melt adhesive film with medium and high-temperature melting point.
Applicable bonding materials:
- Textile fabrics
- Genuine leather
- Polyurethane sponge foam
- Laminated TPU film
- Paper
- Rubber
Applicable fields:
- Clothing
- Shoe Material Field
- Daily necessities
- Medical products
- Car interior
- Luggage industry
- Home textile interior
- lamination
Characteristic:
- Good adhesion to textiles, leather, sponge and TPU film materials
- Excellent washing resistance, can be washed many times without opening the glue
- Transparent color, elastic stretch
We have six types of elastic stretch TPU hot melt adhesive film, divided into HJU120, XJU120, XJU150,XJU135,JJU120 and PE-XJU120. Different types of TPU hot melt adhesive films have different attributes and characteristics, including whether they have backing paper, color, and elasticity.
Technical Data Sheet
Model | HJU120 | XJU120 | XJU150 | XJU135 | JJU120 | PE-YJU120 | |
---|---|---|---|---|---|---|---|
Ingredient | TPU(Polyurethane) | ||||||
With release paper | NO | YES | YES | YES | YES | YES | |
Color/shape | Transparent /film | Transparent /film | Transparent /film | Transparent /film | Transparent /film | Transparent /film | |
Elastic stretch force | YES | YES | Great | YES | YES | YES | |
Melting range (℃) | 105-120 | 95-110 | 125-145 | 105-120 | 105-120 | 95-110 | |
Customizable thickness range (mm) | 0.015-0.10 | 0.025-0.60 | 0.03-0.40 | 0.05-0.40 | 0.025-0.40 | 0.025-0.15 | |
Customizable wide range(mm) | 5-1600 | 5-1530 | 5-1500 | 5-1500 | 5-1530 | 5-1530 | |
Customizable length of each roll(meters) | 5-1000 | 5-500 | 5-500 | 5-500 | 5-500 | 5-1000 | |
Recommended use parameters | Use temperature(℃) | 130-160 | 120-150 | 145-180 | 130-160 | 130-160 | 120-150 |
Ironing pressure(MPa) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
Ironing time(s) | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | |
Characteristic | Elasticity; washable | High elasticity; washable | Elasticity; washable; better adhesion to waterproof fabrics | Elastic; washable; higher quality material | Elastic; washable |
The thickness, width and length of each roll of elastic TPU hot melt adhesive film
We can customize the thickness, width and length of each roll of hot melt adhesive film, please refer to the above technical parameter table. For example, if you want to customize products of 48cm, 100cm width, or 1cm, 2cm width, we can do it. However, different types of TPU hot melt adhesive films have different customization ranges for each roll of length, width and thickness.
The difference between different types of elastic stretch TPU hot melt adhesive film, and product pictures
HJU120 TPU hot-melt adhesive film
HJU120 hot melt adhesive film does not have release paper, the thinnest thickness can be customized to 0.015mm.
Common thickness:0.15mm,0.03mm,0.05mm,0.10mm
Common width:1500mm
Common length of each roll:500 meters/roll
XJU120 TPU hot-melt adhesive film
The XJU120 hot melt adhesive film has a layer of release paper, and the thinnest thickness can be customized to 0.025mm. It is also a commonly used model in hot melt adhesive films.
Common thickness:0.025mm,0.05mm,0.08mm,0.10mm,
0.12mm,0.15mm,0.20mm,0.40mm.
Common width:24mm,480mm,1000mm,1500mm
Common length of each roll:100 meters/roll
XJU150 TPU hot-melt adhesive film
XJU150 hot melt adhesive film has a layer of release paper, which has good elastic stretchability and is mainly used for bonding seamless underwear and bras.
Common thickness:0.05mm,0.10mm
Common width:10mm,20mm,1000mm,1500mm
Common length of each roll:100 meters/roll
XJU135 TPU hot-melt adhesive film
XJU135 is a product developed for the bonding of waterproof fabrics. If you plan to bond only ordinary fabrics, it is not much different from XJU120.
There is not much difference between XJU120, XJU135 and JJU120 from the outside
Common thickness:0.08mm,0.10mm,0.12mm
Common width:1000mm,1400mm
Common length of each roll:100 meters/roll
JJU120 TPU hot-melt adhesive film
Compared with XJU120, JJU120 has a higher melting point and is made with higher purity raw materials, so it has better viscosity.
Common thickness:0.05mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm, 0.20mm
Common width:500mm,1000mm,1530mm
Common length of each roll:100 meters/roll
PE-XJU120 TPU hot-melt adhesive film
The raw material of PE-XJU120 is no different from that of XJU120, and it has the same elasticity, but the backing paper is replaced with PE release film, which is more convenient for some purposes, and the product cost will be slightly lower
Common thickness:0.05mm,0.10mm
Common width:1500mm
Common length of each roll:100 meters/roll,300 meters/roll
Breathable and soft mesh TPU hot-melt adhesive web
If you think that TPU hot melt adhesive film is more expensive and has no air permeability, then you might consider using hot melt adhesive web. Hot melt adhesive web is a net-like hot melt adhesive product, which looks similar to non-woven fabrics, has a soft hand feel, has good air permeability, and has a lower weight, so the cost is lower. Don’t worry about its environmental performance, because it is similar to the hot melt adhesive film, and it is a hot melt adhesive product. We have passed the RoHS 2.0 test of SGS. You can click here to view different types of hot melt adhesive webs, or you can view only TPU-type hot melt adhesive webs.
Our advantage
Source manufacturer, providing wholesale sales
We are a manufacturer of hot melt adhesive film & web in China, not a trader, you can get more favorable wholesale prices. We have multiple production equipments with a daily output of 90,000 meters.
Made of 100% hot melt adhesive particles
The hot melt adhesive film & web we produce are made of 100% hot melt adhesive particles, and no other materials (such as talcum powder) are added to ensure better bonding performance and quality of the product.
Has passed SGS's RoHS 2.0 test
The product has passed SGS's RoHS 2.0 test. It is safe and has no harm to the body. It can be exported to Europe, America and other countries.
FAQ
The use of TPU hot melt adhesive film with backing paper and without backing paper is different. The hot melt adhesive film without backing paper only needs to be ironed between the two layers of materials to be bonded; while the hot melt adhesive film with backing paper needs to be ironed on the backing side. Laminate it with one material and then with another material.
We support non-standard customization, including: width, thickness, length of each roll and other items, etc., please refer to the technical table, please contact us for details.
There are many reasons why the hot melt adhesive film is not firmly bonded, including the operation method, equipment condition and the selected hot melt adhesive film type. Among them, it is particularly important to choose different types of hot melt adhesive films for bonding different materials, because each type of hot melt adhesive film has its own good bonding materials, which is not determined by its price. of. For example, when you plan to bond two kinds of EVA foam, it is more recommended to use EVA type hot melt adhesive film instead of TPU hot melt adhesive film, even if the price of TPU hot melt adhesive film is more expensive.I suggest you click here for more details.
We can provide free samples to facilitate your testing. But we cannot bear the international logistics costs. It is best if you have a DHL, FedEx or TXT account.
We have a variety of packaging solutions. Usually the packaging used for the entire roll is: PE bubble film + kraft paper woven bag, and the inner diameter of the paper tube is 76mm. If you need carton packaging and adding marks, please contact us.
Store in a dry place at room temperature and avoid direct sunlight. Theoretically speaking, the product has no shelf life limit, but it is not recommended to leave it for more than 18 months when it is not in use.
We support T/T, PayPal, Alipay, WeChat and other payment methods, and can provide FOB, EXW, CIF, DDU and other methods of quotation. The lead time varies according to the product model and quantity, usually between 3-30 days.
You can try to apply simple equipment, such as an iron or a flat ironing machine. If you need more professional and efficient equipment, I can recommend equipment manufacturers in China and provide technical support.
Yes, we can accept OEM, you can send us your requirements, and we will pack and label according to your requirements.
Hot melt adhesive films are divided into many types and models according to their composition. They are different in terms of elasticity, color, washing resistance and suitable fields. They are divided into TPU hot melt adhesive film, PES hot melt adhesive film, and EVA Hot melt adhesive film, PO hot melt adhesive film, and PA hot melt adhesive film, etc. Among them, Elastic stretch TPU hot melt adhesive film is one of them. You can view more details by viewing an article on the classification of hot melt adhesive film types.
Yes, we can customize fusible webs and hemming webs, and we have relevant production experience, such as 45 cm width * 5 m length/roll and 43 cm width * 93 cm width/bag, etc. If you have a product sample like this, we can customize the finished product according to your sample and packaging design drawing. MOQ is 2000 units/model.
The elastic stretch TPU hot melt adhesive film we produce is a thermoplastic hot-melt adhesive film. When it is exposed to high temperatures, it will melt repeatedly, not just once. Therefore, after you use it to make a product, you should not expose it to high temperatures again.
